What is a Low-Slope/Flat Roof System?

A roof that is nearly flat or slightly pitched is called a flat roof or low slope roof – No roof should be dead flat because it must have at least a slight slope to drain.

Low-slope & steep-slope terms describe roof slope, the slant of a roof.

  • A low-slope roof is one that has a slope of less than 3-in-12.
  • This means that for every horizontal foot, the roof level goes up less than 3 inches vertically.

A steep-slope roof (typically a shingle roof) depends upon gravity to cause water to flow in one general direction so it can “shed” the water over the breaks & fasteners in the shingles until it flows to the edge.  A low-sloped roof or flat roof can’t depend upon the water to flow in any particular direction so it must form a watertight, monolithic membrane that stays watertight all the way to the drains or edge.

Modern low-slope roof or flat roofs tend to use a continuous membrane covering which can better resist pools of standing water.  These membranes are applied as continuous sheets, bonded together with heat-welding or adhesives.  A more expensive low-slope or flat roof option  include sealed metal roofs using copper or tin. These are soldered interlocking systems of metal panels.

Traditionally, low-slope or flat roofs would use a built-up (“tar and gravel”) roof, but today this traditional type of roofing suffers from performance, cost & environmental concerns requiring better value solutions.

Besides performance in wind, freeze-thaw cycles & UV radiation from the sun, a low-slope/flat roof must also withstand expansion & contraction & remain 100% watertight.  This requires well-engineered attachment, seaming & weathering characteristics to meet these performance demands.

Types of Low Slope/Flat Roof Systems

Built-Up Roof

  • Multiple layers of roofing felt (often called “tar paper”) are mopped in place with hot asphalt or coal-tar pitch (bitumen) to “build up” a strong watertight membrane.
  • Membrane is then surfaced with a coating or gravel imbedded in a pour-coat of more hot bitumen.
  • This type of roof has a long history of performance.
  • This roof system is not known as a flexible membrane, may have some environmental concerns & at times cost-prohibitive due to crude oil prices.

Flat Roof System

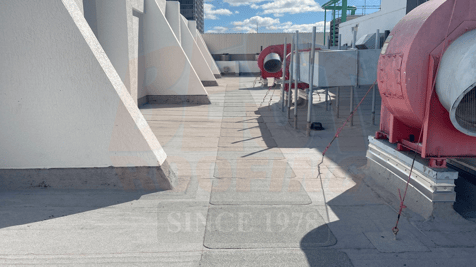

Modified Bitumen

  • Asphalt is chemically modified to allow flexibility & constructed over a heavy polyester or fiberglass mat for strength.
  • Proven track record of performance
  • Superior waterproofing characteristics
  • Broad range of application methods
  • Wide choice of top-surfacing, including “Cool Roofing” options
  • With insulation, provides an even better-performing building component
  • High tensile-strength
  • Available as part of a fire, wind, and/or hail rated roofing system
  • Competitive life-cycle cost
  • Long-term warranties are available with many MB systems

Flat Roof System











Flat Roof System

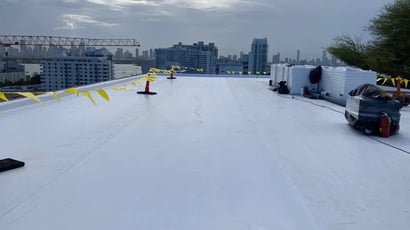

Single Ply

  • Entire membrane roofs are manufactured in factory-controlled conditions that can then be installed as a single ply.
  • Thermoplastic membrane roofs are heat welded single-ply membranes.
  • Usually white which makes them very heat-reflective and highly-scored Energy Star products.
  • Roof seams are very durable since they are welded together.
  • These roofs are generally more environmentally friendly in their manufacture, transportation, installation, performance & disposal.
  • Thermoplastics are the fastest growing type of low-sloped roofing.
  • Proven track record of performance
  • Broad range of application methods
  • Available as part of a “Class A” fire-rated roofing system
  • With insulation, provides an even better-performing building component
  • Wide choice of top-coatings, including “Cool Roofing” options
  • Superior waterproofing characteristics
  • High tensile-strength
  • Competitive life-cycle cost





Flat Roof System











Flat Roof System













No matter what the problem is with your low-slope roof or flat roof, Best Roofing  will give you good advice on the best solution for your roofing needs.
